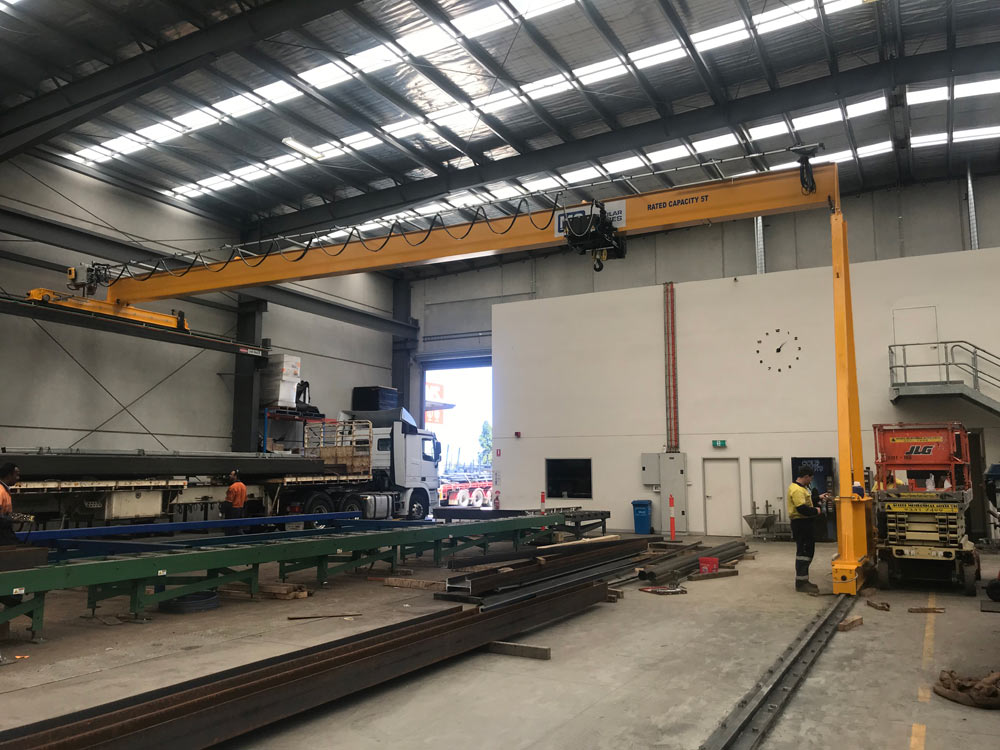

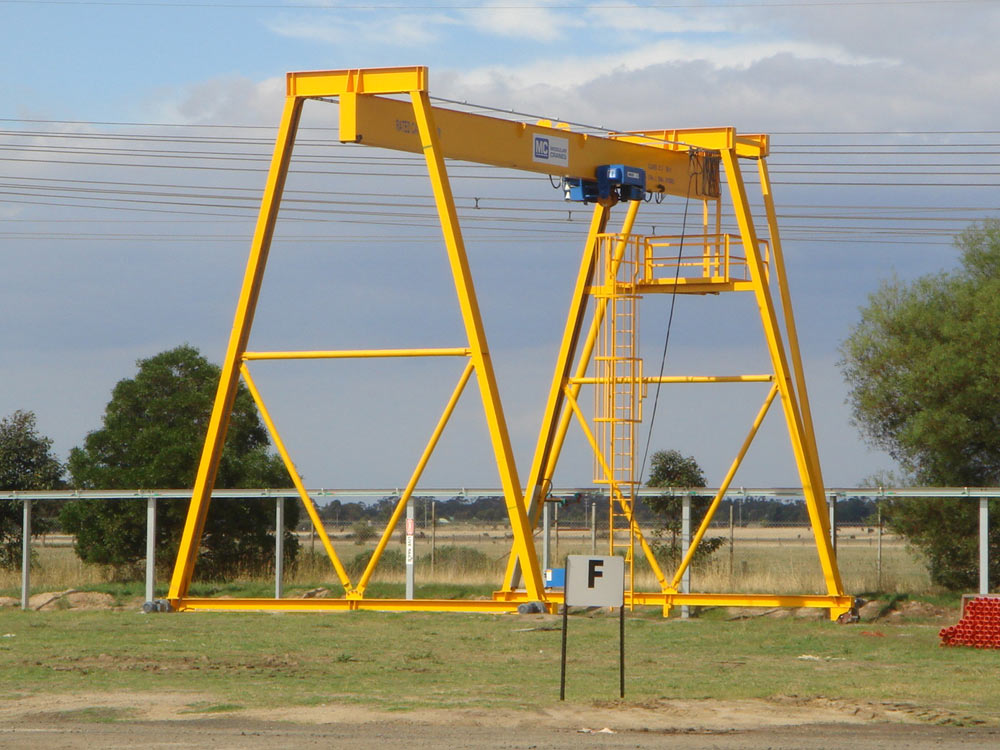

Single Girder Gantry Cranes

• True Vertical lift as an option
• Multiple combinations of drum length, gear ratio and rope reeve
• Capacities up to 20 tonne
• Dual speed or variable frequency control with electrical braking
• All industrial duty classifications
• Standard and extra fast hoisting speed option
• Flexibility to allow process integration
• Failsafe disc brakes on all motions
• Maximum reliability

Options for manual or electric storm locks

Single Girders are utilised in lighter industries.

• Capacity up to 20 tonnes.
• Spans up to 26 metres.
• Internal or external bracing.
• 4 Wheel Drive.
• Onboard maintenance platform.
• Pendant or radio control.
• Cable reel or conductor rail power supply systems.

Semigantry crane is a gantry crane with one end of the bridge rigidly supported on one or more legs that run on a fixed rail or runway, the other end of the bridge being supported by a truck running on an elevated rail or runway. Modular cranes have single girder solutions for Gantry Cranes from 10 T SWL up to 32T and double girder solutions up to 250T SWL. Modular cranes overhead gantry cranes are built to the highest engineering standards using advanced technology and innovative design. Connect with Modular Cranes if you are looking for a gantry cranes in Melbourne for businesses and construction/development sites. Leading gantry crane manufacturer and supplier in Melbourne, Australia to suit all applications we have experience working across various sectors and industries, producing solutions for both indoor and outdoor applications. Modular cranes gantry cranes are mostly used within the mining, general fabrication, precast concrete and ship building industries. Gantry cranes are used where overhead runways are not practical or where an overhead crane is not strong enough. Generally gantry cranes are used for moving heavy loads outdoors. Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting gantry system as used by bridge cranes. Often used in bulk cargo loading operations, gantry cranes are bridge cranes mounted on legs that run along a set of fixed rails or similar track or rails.
